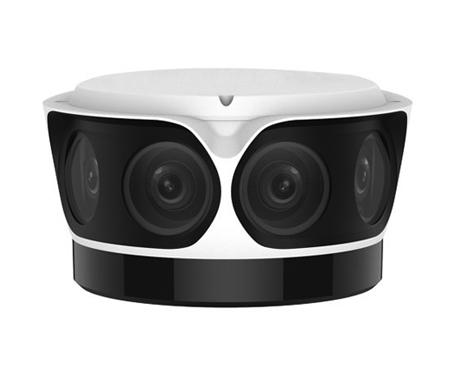

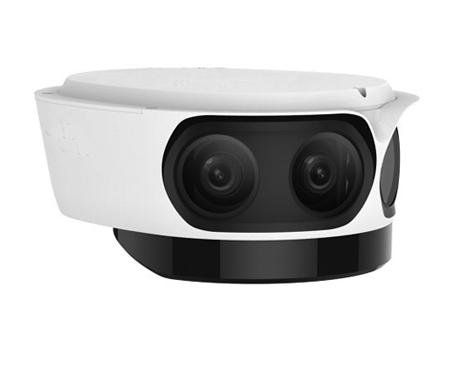

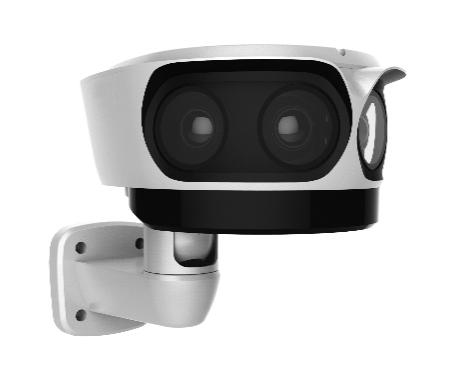

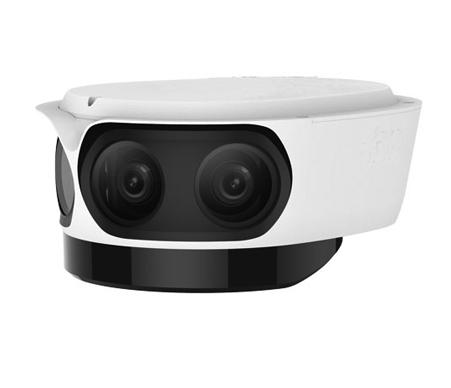

BDTSecure8542ER5DUG
Description
• 1/1.8" progressive scan CMOS
• Up to 4096×1800 resolution,30fps
• 180°Horizontal viewing angle
• 4×4.2mm lens
• Ultra 265,H.265
• Smart IR, up to 50m IR distance
• 120dB True WDR
• 2D/3D DNR, ROI
• AC24V/DC24V, Wide voltage range of ±25%
• IP67
View specifications
BDTSecure8542ER5DUG 4K Starlight Multi-sensor Panoramic Network Camera Datasheet V0.2.pdf
Optics
Fifth-generation infrared technology, up to 50m (164ft) IR distance
Starlight illumination
IR anti-reflection window to increase the infrared transmittance
Smart IR
2D/3D DNR (Digital Noise Reduction)
120dB true WDR
Support a horizontal viewing angle of 180°
Compression
Ultra H.265,H.265, H.264, MJPEG
Triple streams
Customized OSD
4096×1800@30fps supported
Network
ONVIF Conformance
Structure
Intelligent temperature control technology
Wide temperature range: -40°C to 70°C (-40°F to 158°F)
Wide voltage range of ±25%
More effective heat dissipation system
IP67
