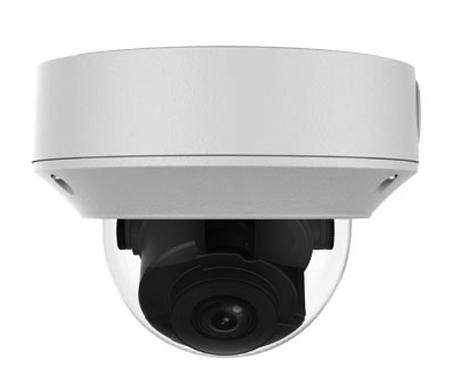

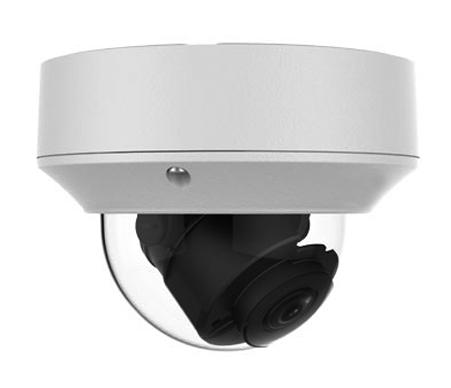

IPC3232ER3-DVZ28-C
  • IPC3232ER3-DVZ28-C
  • IPC3232ER3-DVZ28-C
BDTSecure3232ER328C
Description

• 1/2.8",progressive scan,CMOS
• Up to 1920×1080 resolution,30fps
• 2.8~12mm Motor drive
• Up to 120 dB WDR(Wide Dynamic Range)
• Smart IR, up to 30m(98 ft) IR distance
• 2D/3D DNR, ROI, 9:16 corridor mode
• Ultra 265,H.265,ONVIF
• DC12V,PoE.Wide voltage range of ±25%
• –40°C ~ +60°C
• IP67
• IK10


View specifications

BDTSecure3232ER328C 2MP WDR (Motorized)VF Vandal-resistant Network IR Fixed Dome Camera V2.1.pdf



Optics

* Day/night functionality

* SmartIR, up to 30m (98 ft) IR distance

* Up to 120 dB OpticalWDR(Wide Dynamic Range)

* Lowlight surveillance

* 2D/3D DNR (Digital Noise Reduction)

* Built-in motorized lens for remote zoom

Compression

* Ultra 265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor mode

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Built-in PoE splitter that outputs DC 12V

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IK10 vandal resistant

* IP67

* 3-Axis
