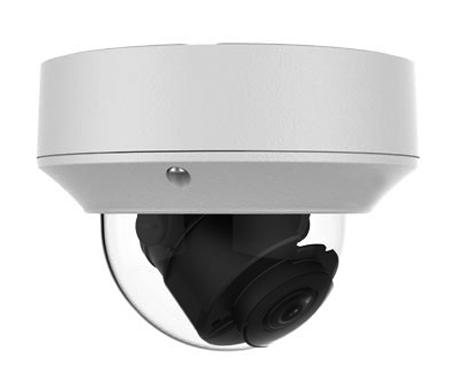

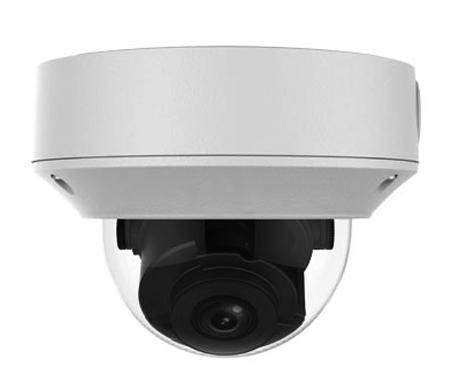

BDTSecure3232ERC
Description
• 1/2.8",progressive scan,CMOS
• Up to 1920×1080 resolution,30fps
• 2.8~12mm
• Smart IR, up to 30m(98 ft) IR distance
• 2D/3D DNR, ROI, 9:16 corridor mode
• Ultra 265,H.265,ONVIF
• DC12V,PoE.Wide voltage range of ±25%
• –40°C ~ +60°C
• IP67
• IK10
View specifications
BDTSecure3232ERC 2MP Network IR Fixed Dome Camera V2.1.pdf
Optics
Day/night functionality
SmartIR, up to 30 m (98 ft) IR distance
Lowlight surveillance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.264, MJPEG
Embedded smart algorithm
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Network
ONVIF Conformance
Structure
Support PoE power supply
Built-in PoE splitter that outputs DC 12V
Wide temperature range: -40°C to 60°C (-40°F to 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67
3-Axis
