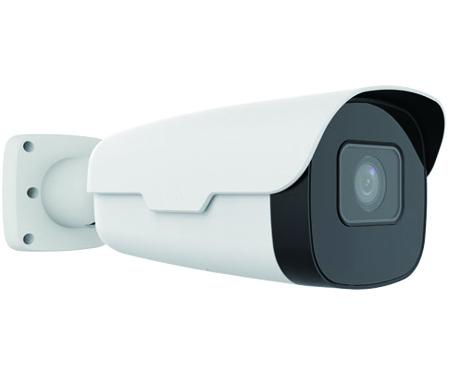

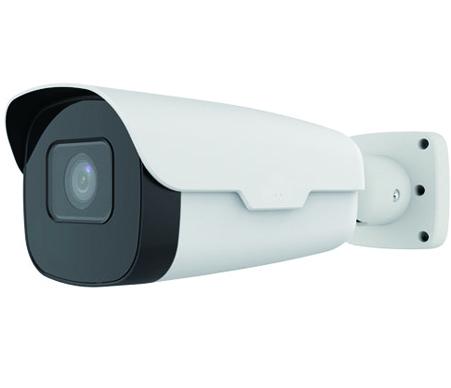

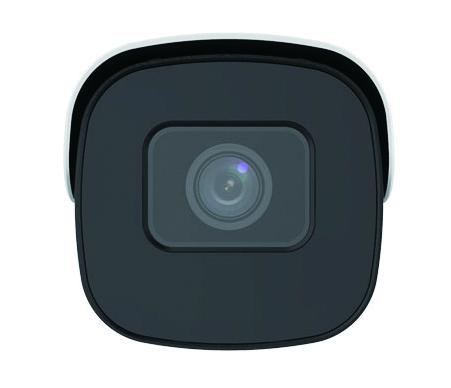

BDTSecure268EADZK
Description
• 1/1.8",progressive scan,CMOS
• Up to 3840x2160 resolution,30fps
• 2.8~12mm Optical Zoom & Auto Focus
• Smart IR, up to 100m IR distance
• 120dB True WDR
• Ultra 265,H.265,ROI,ONVIF
• AC24V±25%, DC12V(-10%~+25%), PoE
• Support 1/1 audio in/out, 2/1 alarm in/out
• IP67, IK10
View specifications
BDTSecure268EADZK 8MP LightHunter Deep Learning Bullet Network Camera datasheet V1.1.pdf
Optics
1/1.8", Powered by lighthunter
SmartIR, up to 100m (328 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
3840*2160@30fps in the main stream
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
DC12V or AC24V or PoE power supply
Wide voltage range of ±25% in AC, -10%~+25% in DC
Micro SD, up to 256 GB
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection
IK10 vandal resistant
