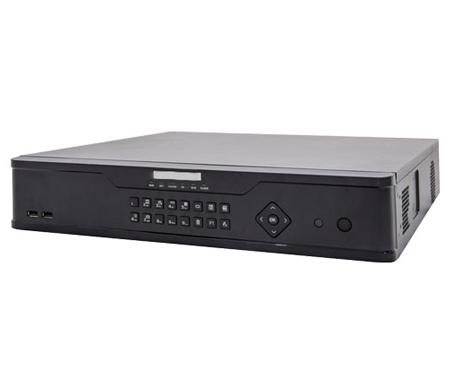

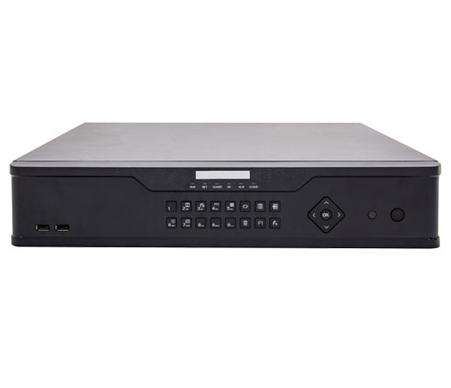

BDTSecure NVR304-EP-B Series
Description
• 16/32-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G,Profile T
• Up to 12 Megapixels resolution recording
• Support Ultra 265/H.265/H.264 video formats
• Plug & Play with up to 16 independent PoE network interfaces
• 4 SATA HDDs, Up to 10TB for each HDD
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
View specifications
BDTSecure NVR304-EP-B Series V1.1.pdf
Support Ultra 265/H.265/H.264 video formats
16/32-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

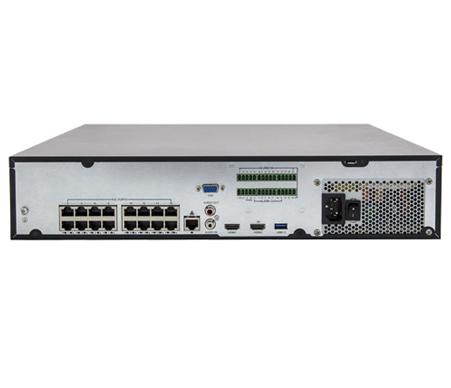

Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840x2160) resolution
HDMI1/VGA and HDMI2 independent outputs provided
Up to 12 Megapixels resolution recording
4 SATA HDDs, Up to 10TB for each HDD
Various fisheye dewarping modes for live view and playback for both web interface and GUI
Support for 12V Power output
Plug & Play with up to 16 independent PoE network interfaces
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
